Medicion de C02 Arduino

Hola  a todos! Debido a que muchas personas me han escrito pidiendome el código de medición de CO2 usando arduino, pues aquí lo adjunto.
Sin embargo deben tener en cuenta algunas consideraciónes:

- El código debe ser usado SÓLO como demostración, se requiere de una calibración más sofisticada para una aplicación industrial.
- No me hago responsable de las aplicaciones y consecuencias de estas por parte de terceros.
- El código originalmente pertenece a: Tiequan Shao: tiequan.shao@sandboxelectronics.com
                                                               Peng Wei:     peng.wei@sandboxelectronics.com


/*******************Demo for MG-811 Gas Sensor Module V1.1*****************************
Author:  Tiequan Shao: tiequan.shao@sandboxelectronics.com
         Peng Wei:     peng.wei@sandboxelectronics.com

Lisence: Attribution-NonCommercial-ShareAlike 3.0 Unported (CC BY-NC-SA 3.0)

Note:    This piece of source code is supposed to be used as a demostration ONLY. More
         sophisticated calibration is required for industrial field application.

                                                    Sandbox Electronics    2012-05-31
************************************************************************************/

/************************Hardware Related Macros************************************/
#define         MG_PIN                       (0)     //define which analog input channel you are going to use
#define         BOOL_PIN                     (2)
#define         DC_GAIN                      (8.5)   //define the DC gain of amplifier


/***********************Software Related Macros************************************/
#define         READ_SAMPLE_INTERVAL         (50)    //define how many samples you are going to take in normal operation
#define         READ_SAMPLE_TIMES            (5)     //define the time interval(in milisecond) between each samples in
                                                     //normal operation

/**********************Application Related Macros**********************************/
//These two values differ from sensor to sensor. user should derermine this value.
#define         ZERO_POINT_VOLTAGE           (0.220) //define the output of the sensor in volts when the concentration of CO2 is 400PPM
#define         REACTION_VOLTGAE             (0.020) //define the voltage drop of the sensor when move the sensor from air into 1000ppm CO2

/*****************************Globals***********************************************/
float           CO2Curve[3]  =  {2.602,ZERO_POINT_VOLTAGE,(REACTION_VOLTGAE/(2.602-3))};
                                                     //two points are taken from the curve.
                                                     //with these two points, a line is formed which is
                                                     //"approximately equivalent" to the original curve.
                                                     //data format:{ x, y, slope}; point1: (lg400, 0.324), point2: (lg4000, 0.280)
                                                     //slope = ( reaction voltage ) / (log400 ¨Clog1000)


void setup()
{
    Serial.begin(9600);                              //UART setup, baudrate = 9600bps
    pinMode(BOOL_PIN, INPUT);                        //set pin to input
    digitalWrite(BOOL_PIN, HIGH);                    //turn on pullup resistors

   Serial.print("MG-811 Demostration\n");

}

void loop()
{
    int percentage;
    float volts;


    volts = MGRead(MG_PIN);
    Serial.print( "SEN-00007:" );
    Serial.print(volts);
    Serial.print( "V           " );


    percentage = MGGetPercentage(volts,CO2Curve);
    Serial.print("CO2:");
    if (percentage == -1) {
        Serial.print( "<400" );

    } else {
        Serial.print(percentage);


    }

    Serial.print( "ppm" );
    Serial.print("\n");

    if (digitalRead(BOOL_PIN) ){
        Serial.print( "=====BOOL is HIGH======" );
    } else {
        Serial.print( "=====BOOL is LOW======" );
    }

    Serial.print("\n");

    delay(900);
}



/*****************************  MGRead *********************************************
Input:   mg_pin - analog channel
Output:  output of SEN-000007
Remarks: This function reads the output of SEN-000007
************************************************************************************/
float MGRead(int mg_pin)
{
    int i;
    float v=0;

    for (i=0;i<READ_SAMPLE_TIMES;i++) {
        v += analogRead(mg_pin);
        delay(READ_SAMPLE_INTERVAL);
    }
    v = (v/READ_SAMPLE_TIMES) *5/1024 ;
    return v;
}

/*****************************  MQGetPercentage **********************************
Input:   volts   - SEN-000007 output measured in volts
         pcurve  - pointer to the curve of the target gas
Output:  ppm of the target gas
Remarks: By using the slope and a point of the line. The x(logarithmic value of ppm)
         of the line could be derived if y(MG-811 output) is provided. As it is a
         logarithmic coordinate, power of 10 is used to convert the result to non-logarithmic
         value.
************************************************************************************/
int  MGGetPercentage(float volts, float *pcurve)
{
   if ((volts/DC_GAIN )>=ZERO_POINT_VOLTAGE) {
      return -1;
   } else {
      return pow(10, ((volts/DC_GAIN)-pcurve[1])/pcurve[2]+pcurve[0]);
   }
}

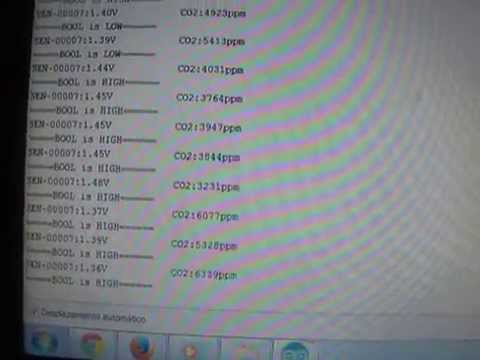

link del video de demostración:
